IDP Blueprint

Backstage (Developer Portal)

  • Chart: backstage (pinned 2.6.3), deployed via Kustomize helmCharts.
  • Namespace: backstage, with LimitRange and ResourceQuota sized for a web app + Postgres.
  • Secrets: ExternalSecrets from Vault (secret/backstage/app, secret/backstage/postgres), using a dedicated SecretStore and SA external-secrets.
  • Exposure: HTTPRoute backstage.nip.io on the platform gateway (TLS terminates at the Gateway).
  • Monitoring: ServiceMonitor labeled prometheus: kube-prometheus scraping service backstage port http.
  • Operations:
    • Deploy isolated: task stacks:backstage (requires REPO_URL/TARGET_REVISION).
    • Included in full deploy (task stacks:deploy) via fuses.backstage (config.toml).
    • Tweak backstage/backstage/values.yaml for custom images or extra integrations.

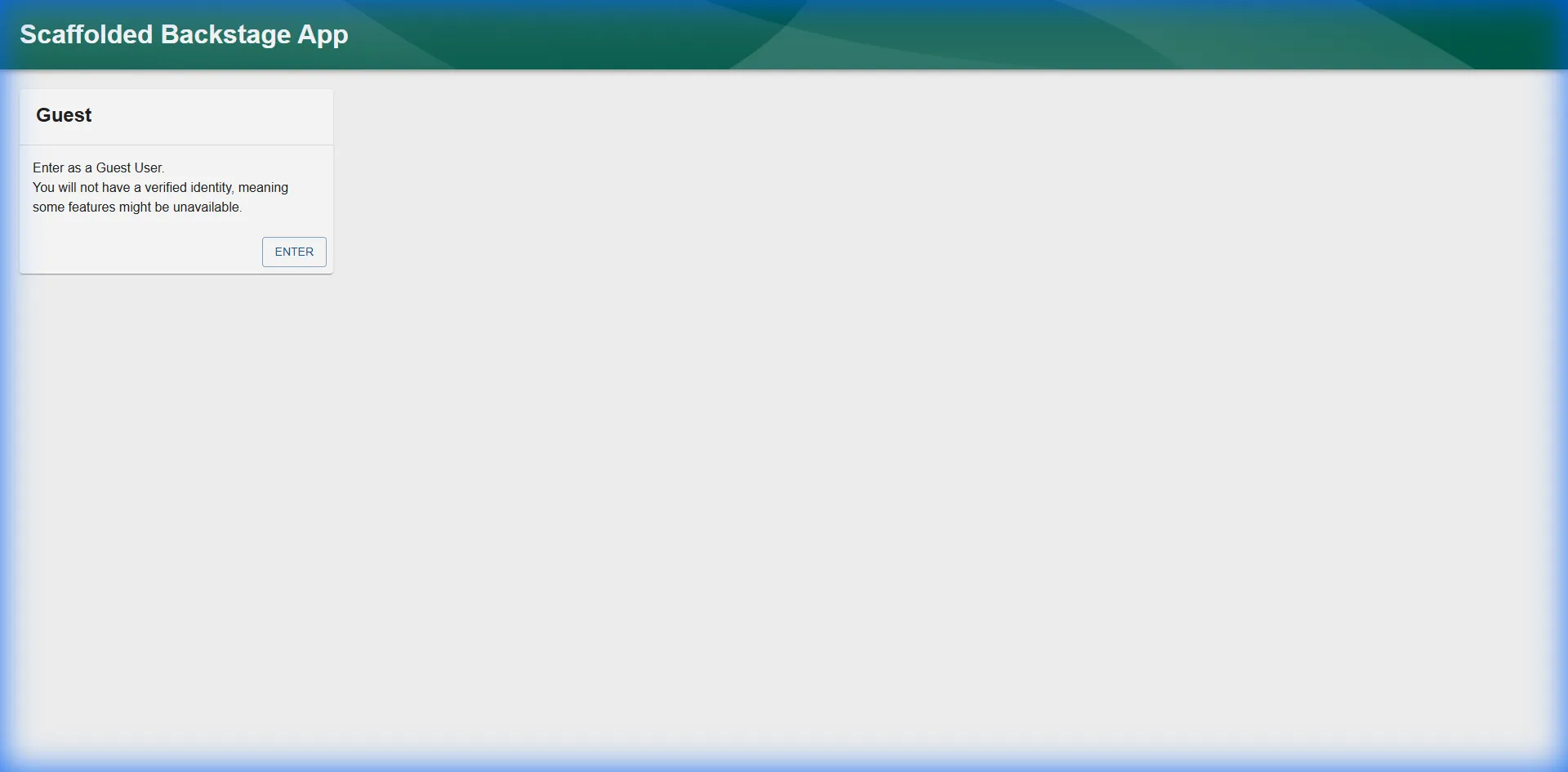

Backstage UI Placeholder
